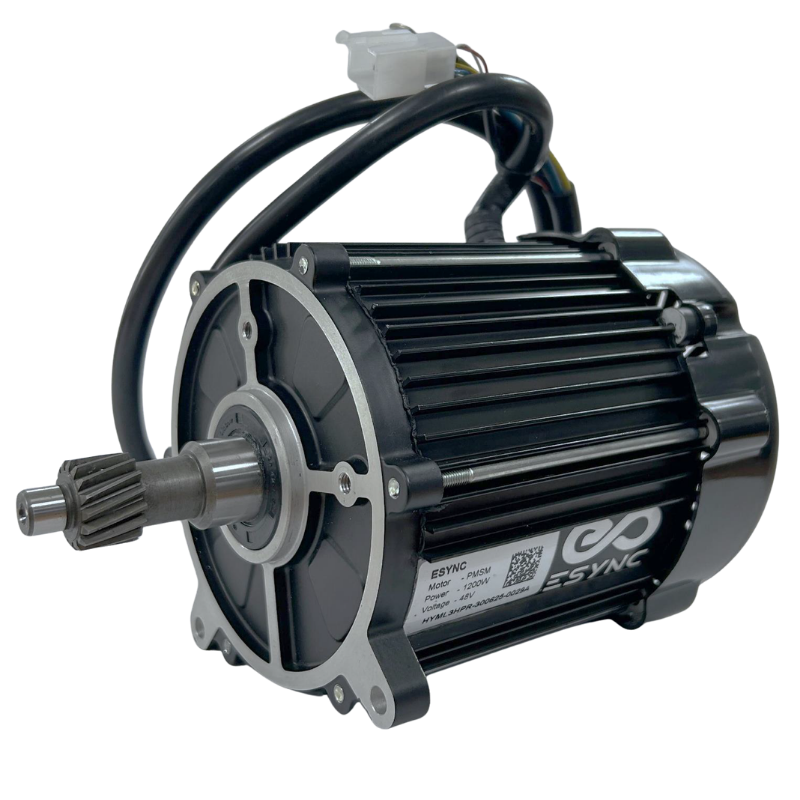

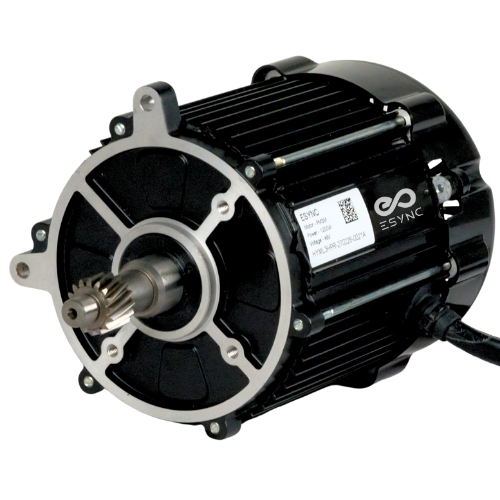

The ESYNC eAxle Motor is engineered as the core power unit of the drivetrain, purpose-built to deliver reliable torque, thermal stability, and smooth performance under real commercial operating conditions.
Validated Across Rated Torque Bands for consistent real-world performance
Optimized Multi-Speed Compatibility for efficient power delivery across applications
Thermal Stability at High Temperatures under sustained load conditions
Low NVH Characteristics for smoother and quieter operation
High-Efficiency Magnetic Circuit Design to minimize core losses
Precision-Balanced Rotor Assembly for durability and refined drivetrain behavior
Compact Integrated Architecture for modern 3W chassis platforms
Model : H Pro
Motor Type : PMSM
Rated Power : 1.2 KW
Rated Voltage : 48V/68V
DC Bus Current : 50A / 60A
Rated Torque : 10 Nm
Rated Speed : 2400 +/- 10% rpm
No Load Speed @52V : 3500 +/- 10% rpm
Max Torque : 32 Nm
Max Efficiency : >91%
IP Level : IP67
Regenerative : Yes
Warranty : 2 Years
Weight : 6.5 Kg
Operating Temperature : -20°C ~ 80°C
Model : H Pro
Motor Type : PMSM
Rated Power : 1.5 KW
Rated Voltage : 48V/68V
DC Bus Current : 50A / 60A
Rated Torque : 10 Nm
Rated Speed : 2400 +/- 10% rpm
No Load Speed @52V : 3500 +/- 10% rpm
Max Torque : 32 Nm
Max Efficiency : >91%
IP Level : IP67
Regenerative : Yes
Warranty : 2 Years
Weight : 6.5 Kg
Operating Temperature : -20°C ~ 80°C
